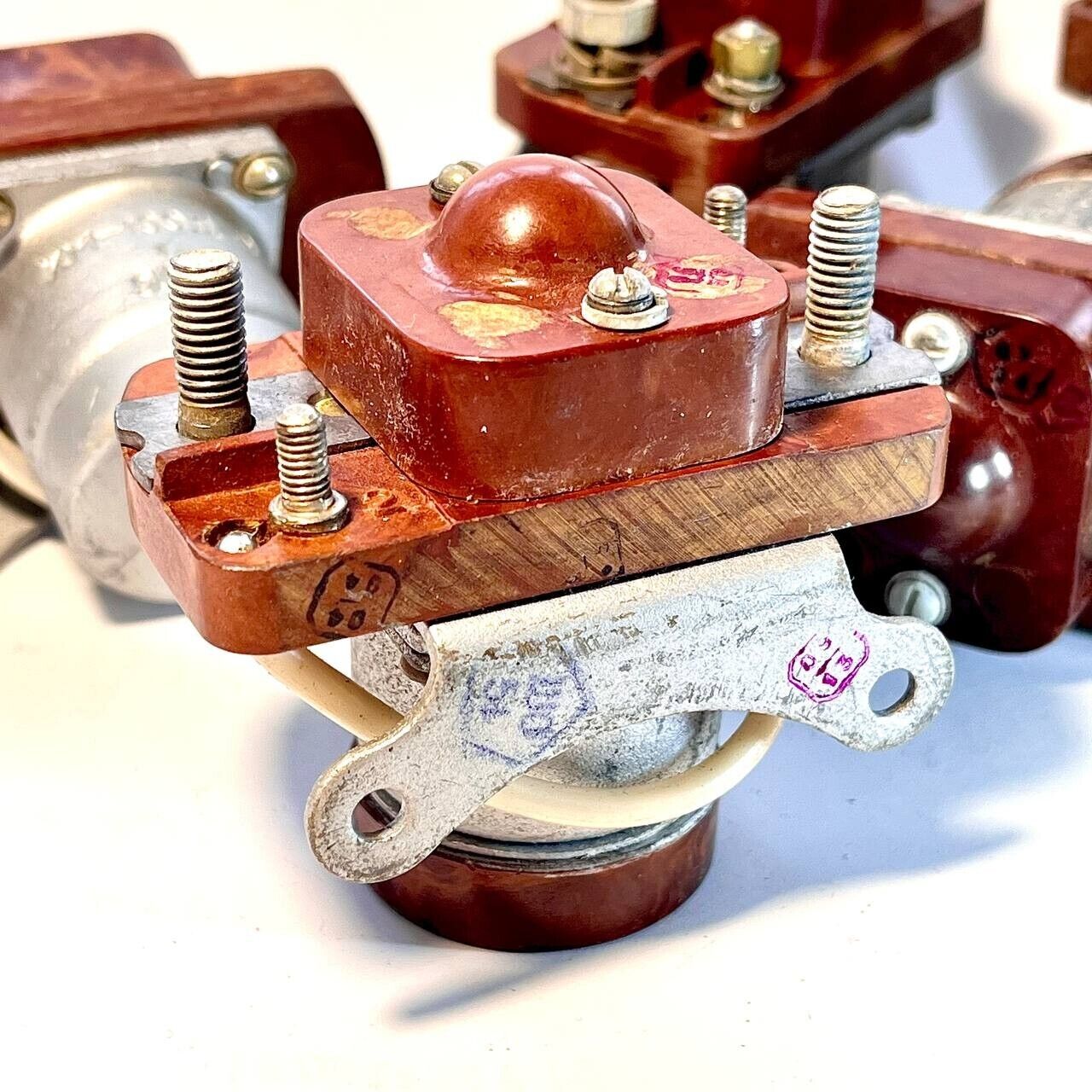

Vintage KM-100DV Compact Electromagnetic Contactor | USSR Military Relay | Indus

$225.00
+ −

Shipping information

Economy shipping (Free shipping)
Ukraine

Description

Compact contactor KM-100D-V is a two-position electromagnetic device designed for remote switching on and off of power consumers of electrical energy.

The KM-100DV contactor is designed to operate at ambient air temperatures from +50°C to -60°C, relative humidity up to 98% at 40°C, altitudes up to 20,000 meters, and vibration at mounting points in the frequency range of 10–200 Hz.
The contactor withstands linear acceleration up to 8g without damage or unintended switching and short-term shaking of mounting points at frequencies of 60–100 impacts per minute with acceleration up to 4g.

The operating principle is based on the electromagnetic property. When control voltage is applied to the contactor’s coil, the core is pulled in, closing the main circuit contacts. Without control voltage, the contacts open. Contact type: 1NO – one normally open contact.

Advantages of KM Contactors:
 • Suitable for mobile equipment
 • Relatively small size

Technical Specifications of the KM-100DV Contactor:
 • Rated current in contact circuits: 100 A
 • Rated coil voltage: 27 V
 • Rated coil current: 0.4 A
 • Contact inductive load: 0.0075 s
 • Rated current in auxiliary circuit: max 5 A
 • Contact resistance: max 30 mΩ
 • Actuation voltage: ≤18.9 V on, ≤8.1 V off
 • Mechanical lifespan: 100,000 cycles
 • Switching cycles: 50,000 cycles
 • Insulation resistance: ≥100 MΩ
 • Dielectric strength:
 • Between contacts: 2000 VAC
 • Between coil and contacts: 1500 VAC


 1. Compact contactor
 2. KM-100DV relay
 3. Vintage electrical device
 4. Soviet industrial part
 5. Military-grade contactor
 6. USSR engineering component
 7. Aviation relay
 8. Retro industrial equipment
 9. High-altitude contactor
 10. Collectible USSR item
 11. Industrial decor
 12. Electromagnetic device
 13. Vintage electrical switch

13 Materials:
 1. Steel
 2. Copper
 3. Aluminum
 4. Plastic
 5. Rubber
 6. Electromagnetic coil
 7. Insulation material
 8. Nickel plating
 9. Chromium plating
 10. Alloy screws
 11. Soldering material
 12. Electrical wiring
 13. Vibration-resistant components
⚠️I am open to any offers. ????PLEASE CHECK ALL PICTURES FOR MORE DETAILS ????CHECK OUT MY OTHER LISTINGS, SO MANY VARIOUS VINTAGE AND UNIQU Please contact me if you would like to discuss your purchase. ‼️There is no refund or return of goods ‼️The purchase of any product is final, and after the purchase you confirm that you are satisfied with everything and you are familiar with the information that there are no returns.
