VHF WIDE BAND Antenna, folded dipole 136-174 MHz,adjustable diagram 3 DBd 300W

$160.00
New without tag
+ −

Shipping information

Nova Poshta Global (Free shipping)
Ukraine

Description

DA-1501 is a single dipole wide band VHF antenna for professional radio systems. Dipole incorporates 1/4 wave coax line matching circuit optimized for wide bandwidth and accurate matching. All connections made by soldering and have 2 layers of sealing. All antenna parts are made of aluminum . All components of dipole elements are DC grounded for better lighting and anti-static protection.

Frequency range              130 – 175   MHz

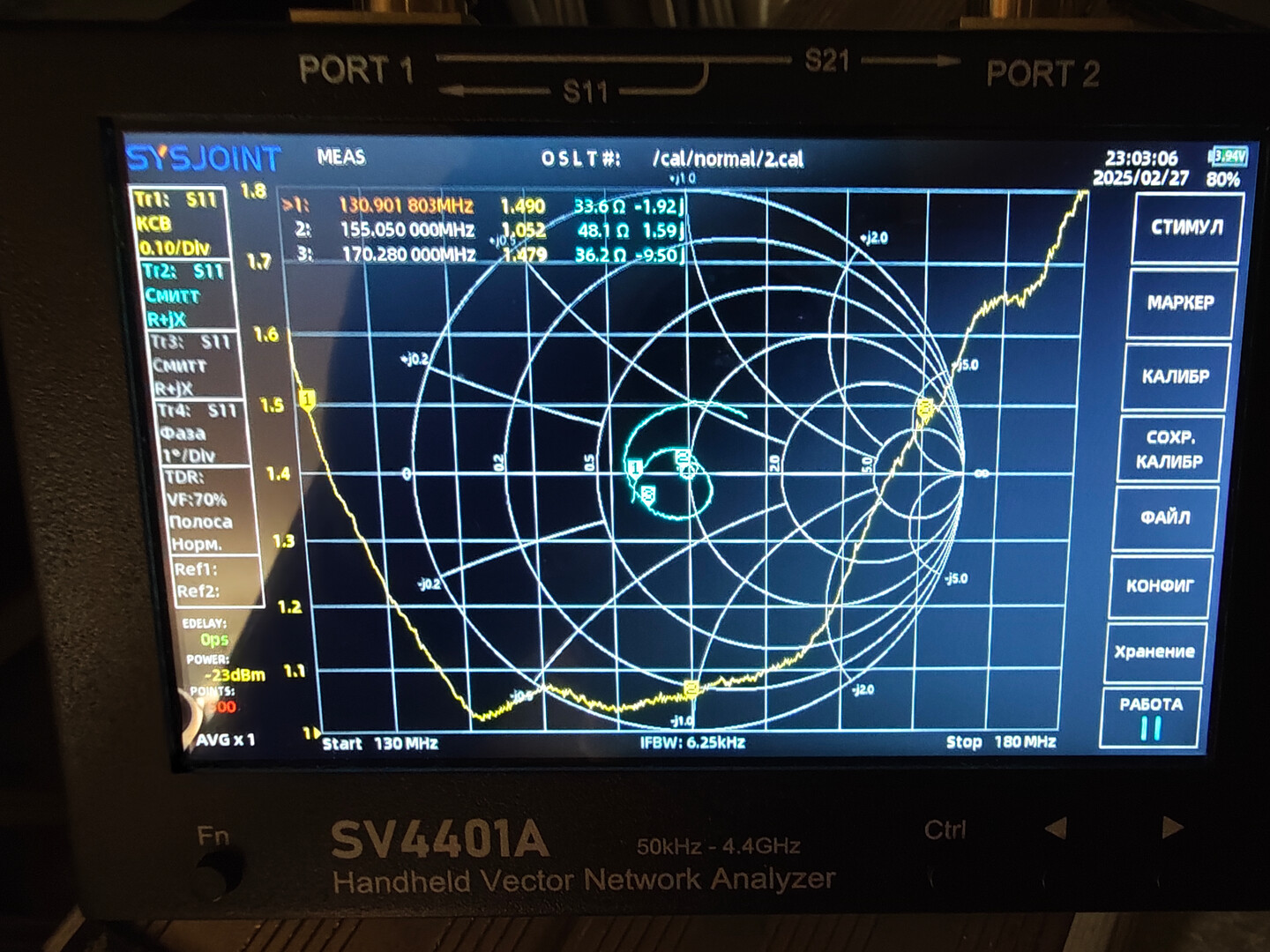

Bandwidth SWR < 1,5             40        MHz

Gain                                        3         dBd

Power rating max.                300 W

Overall dimensions                3/ 3        ft

Weight                                   1.0          kg

Impedance, Ohm                    50

Termination                        N- male

Lightning protection         DC Ground

It is a serially manufactured antenna, it has high quality and reliability.

Important: each antenna produced for each personal order and personal needed

customer frequency range-minimum SWR, so when you place the order, let me know your desired central (transmitting)

frequency.

The shipping time to US by regular shipping service is usually about 15 days.

Also usually we need about 5 days to produce the antenna.

Note: because of local customs, we not are sending any paper instructions by parcel!

Short manual for installation:

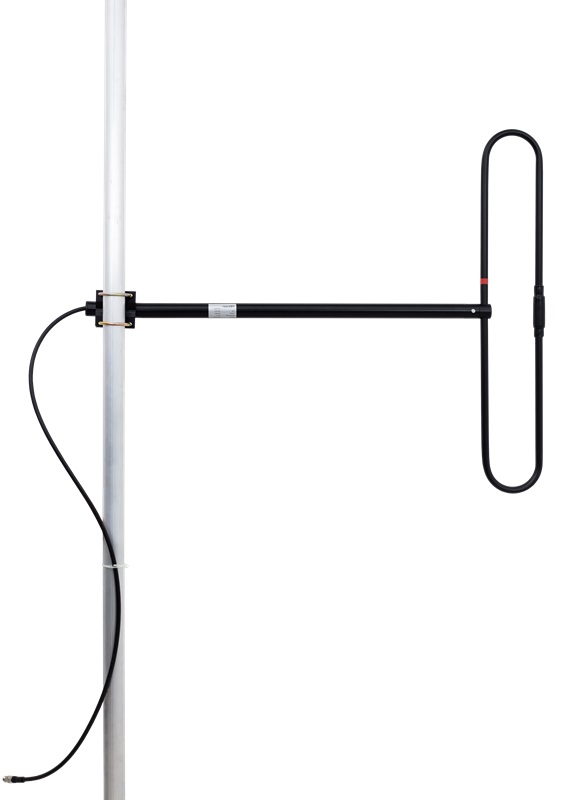

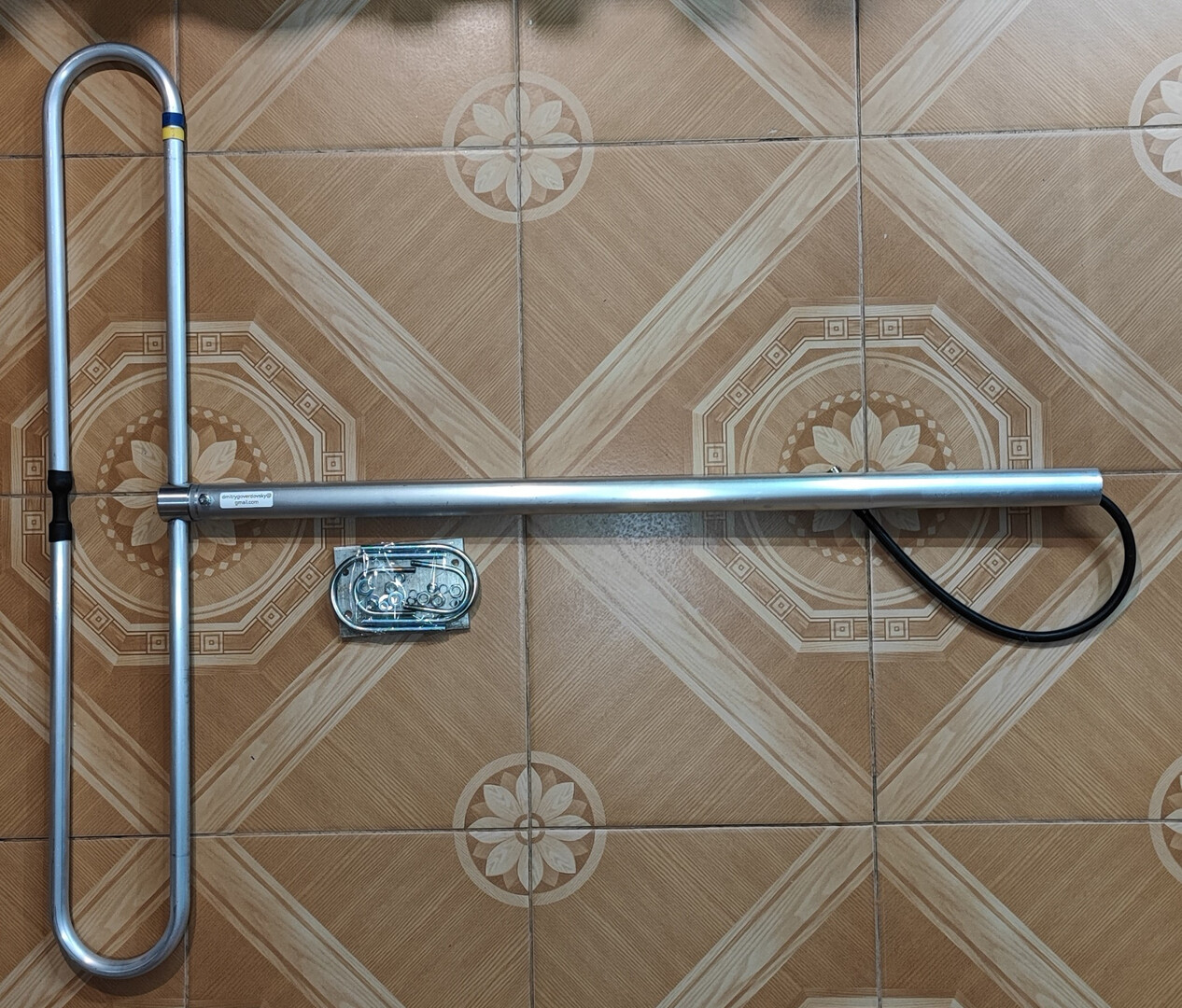

Install the supplied hardware exactly as shown in the photo. Colored marker on dipole indicate upward direction. Accordingly, the drainage hole at the end of the antenna should point downward.

The antenna mast must be grounded.

If you have any questions about the assembly and installation of the antenna, please contact me.
